Functions And Features

It is made of prefabricated charged removable silicon rubber cable, fully sealed, fully insulated, maintenance-free, and can reliably ensure personal safety. The structure is small and beautiful, in stainless steel double-layer box, with service life of more than 20 years.

Without affecting the operation of the main network, it achieves regional outage repair, and reduces the scope of power outages; It can be equipped with one or more SF6 Load Switches. The wiring method is flexible and diverse, the branches can be up to 8 loop; Optional arrester, short circuit fault indicator, current limiting fuse, meet the various requirements of users.

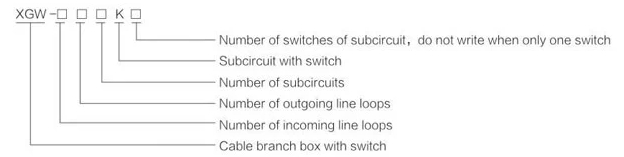

Model And Meaning

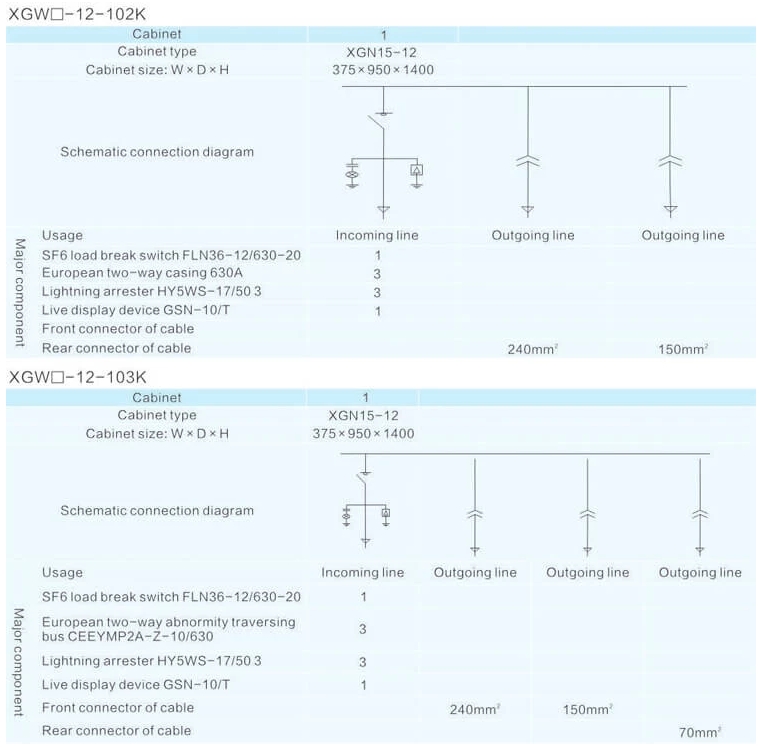

Technical Parameter

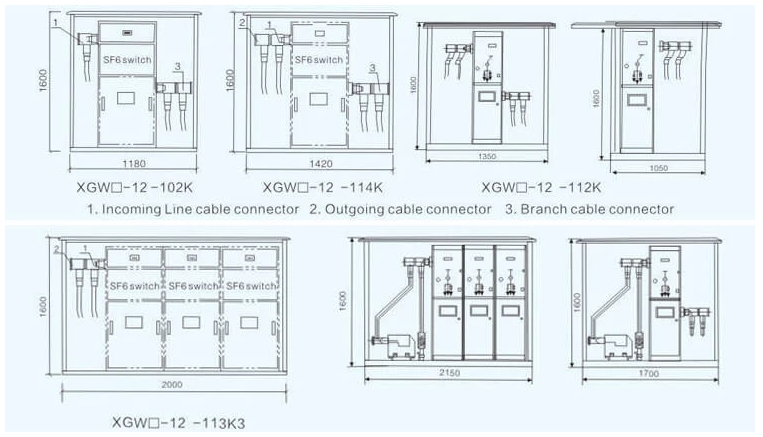

Outline Diagram

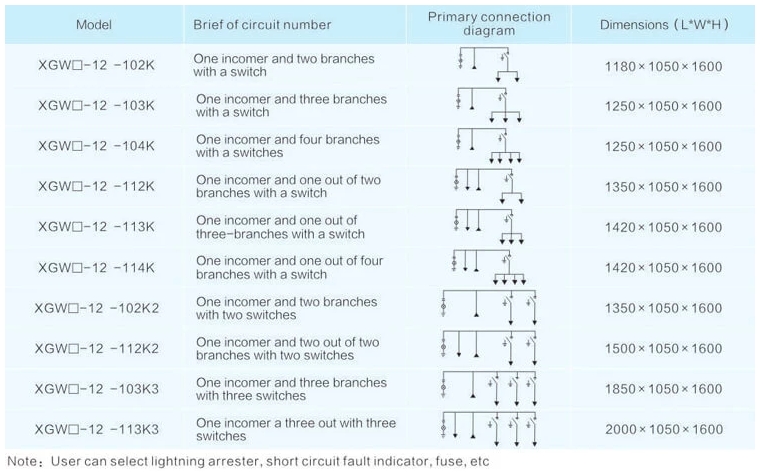

XGW口-12 Common Schemas Example
