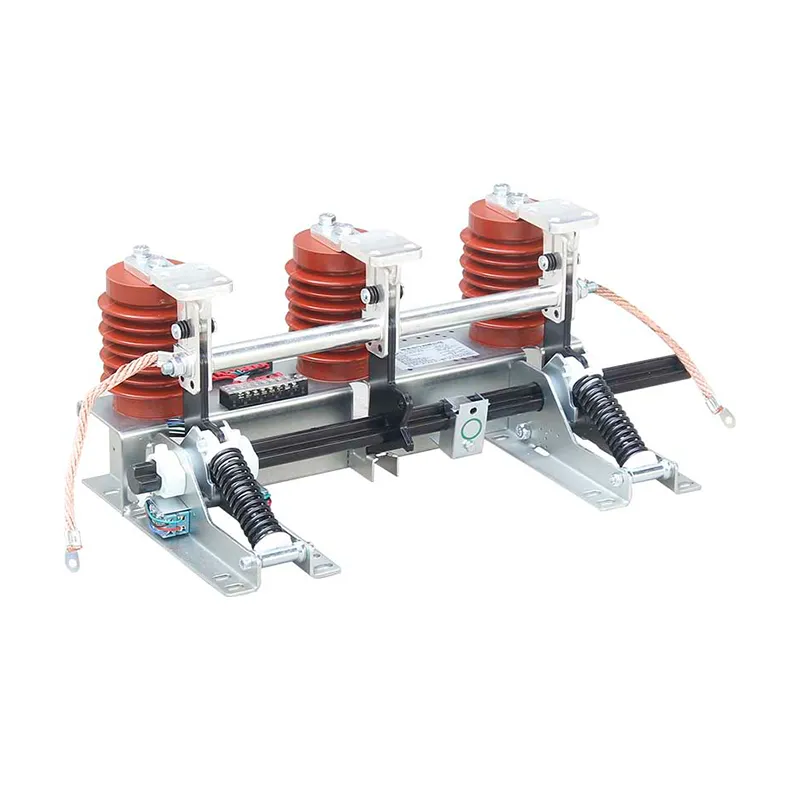

12KV Indoor High Voltage AC Electrical Earth Switch JN15-12/31.5

Description:

The Earthing switch is a type of electrical switch that is used to connect or disconnect an electrical circuit from the ground. It is typically used to provide a safe path for electrical current to flow to the ground in the event of a fault or short circuit.

Request a Quote

Download

Detailed Description

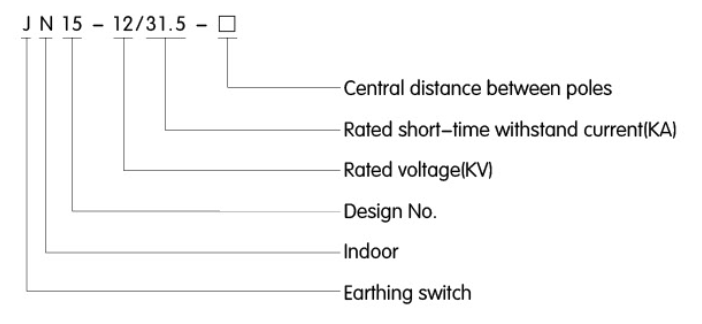

Product definition

Introduction

JN15 -12/31.5 Series indoor Earthing Switch is a new design which is improved on the ES1 type. It is suitable for electric power system with 3-12KV, three- -phase and AC501601Hz As an eathing protection, it can be used in various kinds of HV Switchgears. It meets GB1985- -2004 and IEC129 standard.

Working condition

O Ambient temperature:-10°C - +40°C ; O Altitude:≤1000m; O Relative humidity: Daily average≤95%， Monthly average≤90% O Earthquake intensity:≤8 degree; O Dirtiness degree: II.

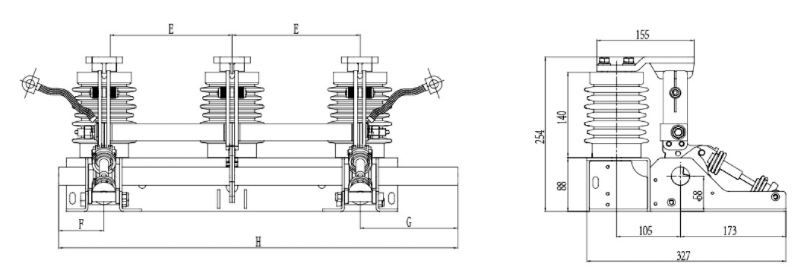

Drawing

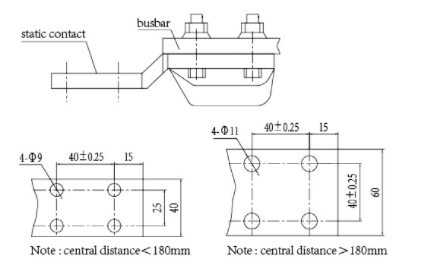

Coppcr tcrminal block

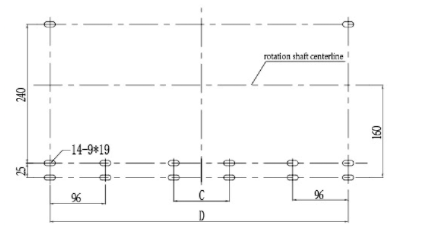

Holc location diagram

No.	ltem		Unit	Data
1	Rated voltage		KV	12
2	Rated short time withstand current		KA	31.5
3	Rated short circuit withstand time		S	4
4	Rated short circuit making current		KA	80
5	Rated peak withstand current		KA	80
6	Rated insulation level	1min power frequency withstand voltage		42
6	Rated insulation level	Lightning Impulse withstand voltage	KV	75
7	Mechanical life		TIMES	2000

(Unit:mm)
Specification	E	F	G	H	D	C
JN15-12/31.5-165	165	75	160	565	426
JN15-12/31.5-180	180	75	160	595	456
JN15-12/31.5-200	200	75	160	635	496
JN15-12/31.5-210	210	75	160	655	516
JN15-12/31.5-220	220	75	160	675	536
JN1512/31.5230	230	75	160	695	556	96
JN15-12/31.5-250	250	75	160	735	596	96
JN15-12/31.5-275	275	75	185	810	646	96

Order notes:Indicate product speifiation, central distance between poles, if the electric live displaylmodel number of display) needed or not. Please note the soft link length when ordering (normal L=250mm). Please consult us if you have any special request.
