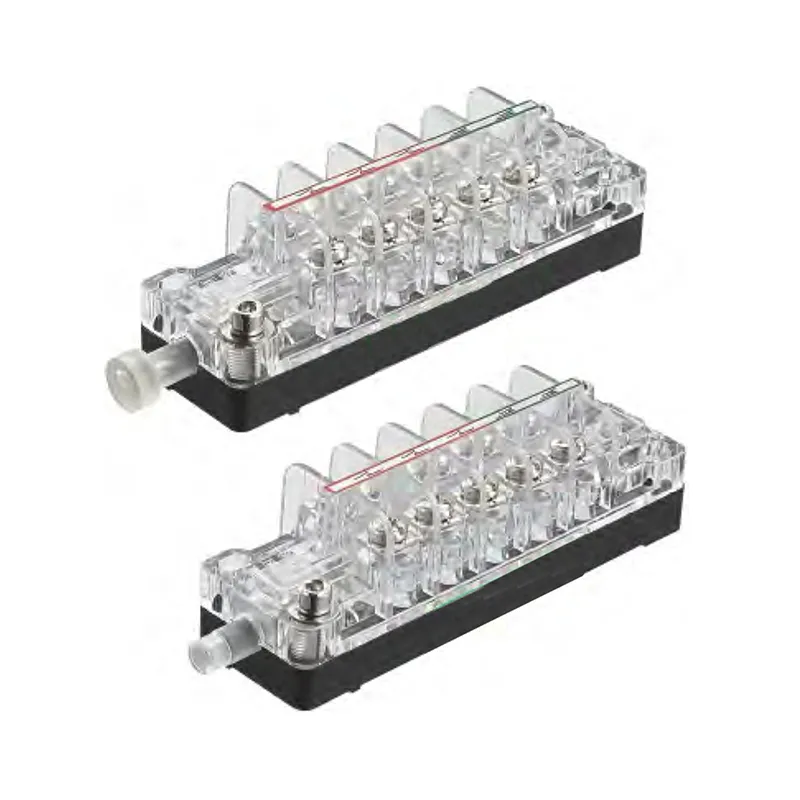

The main characteristics of an Auxiliary Switch include compact structure, small size, convenient and flexible operation, flexible installation position, high reliability, and strong durability. The Auxiliary Switch has a high frequency mechanical and electrical lifespan, with protection functions such as overcurrent and short circuit, ensuring the stable operation and safety of the equipment.

Drawing

-Rated current: 10A/20A/30A (depending on different models)
-Rated voltage: up to 250V AC/DC
-Connection method: Single Pole Double Throw (SPDT) or Double Pole Double Throw (DPDT)
-Electrical lifespan: over 1 million times
-Mechanical lifespan: over 5 million times
-Working temperature: -40 ℃~+80 ℃
