Product overview

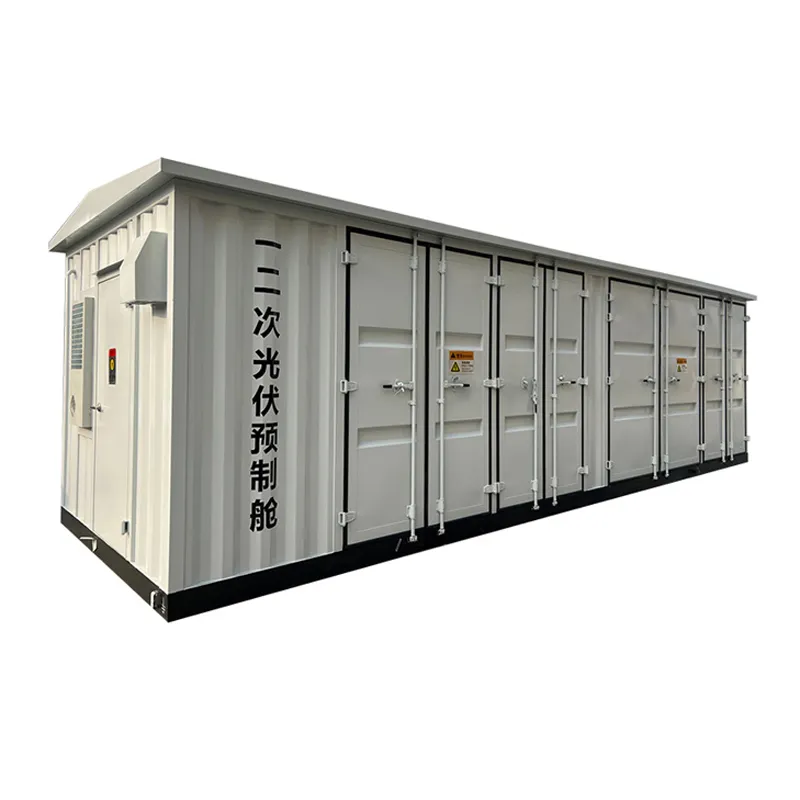

Prefabricated cabin substation is composed of prefabricated cabin, primary and secondary substation equipment, and auxiliary facilities of cabin. Pre-manufacturing including assembly, wiring and debugging is carried out in the factory, and the cabin as a whole is transported to the construction site and installed on the foundation. It comes from the core concept of "standard distribution" of State Grid, and is designed on the basis of traditional container transformation and combined with container style.

Product features

●High reliability

Safe and reliable operating environment, complete maintenance-free prefabricated cabin structure, built-in air conditioning, constant temperature and humidity.

●Standardization

After the specification of the cabin and the size of the standard container are improved, it becomes a box that is conducive to the use of substations.

●Modularization

According to the different functions of electrical equipment, the cabin is divided into several modular compartments. Through the cooperative work of each module, the prefabricated cabin substation becomes a new type of power transmission and distribution facility.

Product advantage

●Factorization

All equipment installation and debugging are factory-oriented.

●Low noise

Adopt sound barrier technology to reduce transformer noise.

●Beautiful appearance

Cabin and cabinet integrated design concept, modular structure of building blocks, harmonious and unified with urban style.

●Build a station quickly.

The station can be put into operation in 3-6 months.

●Long service life

The main components are completely maintenance-free, the cabin is 30 years rust-proof and the service life is 60 years.

1.Cabin structure

2.Auxiliary electrica

3.Grounding protection

4.Heating, Ventilation and Air Conditioning (HVAC)

5.Product delivery
