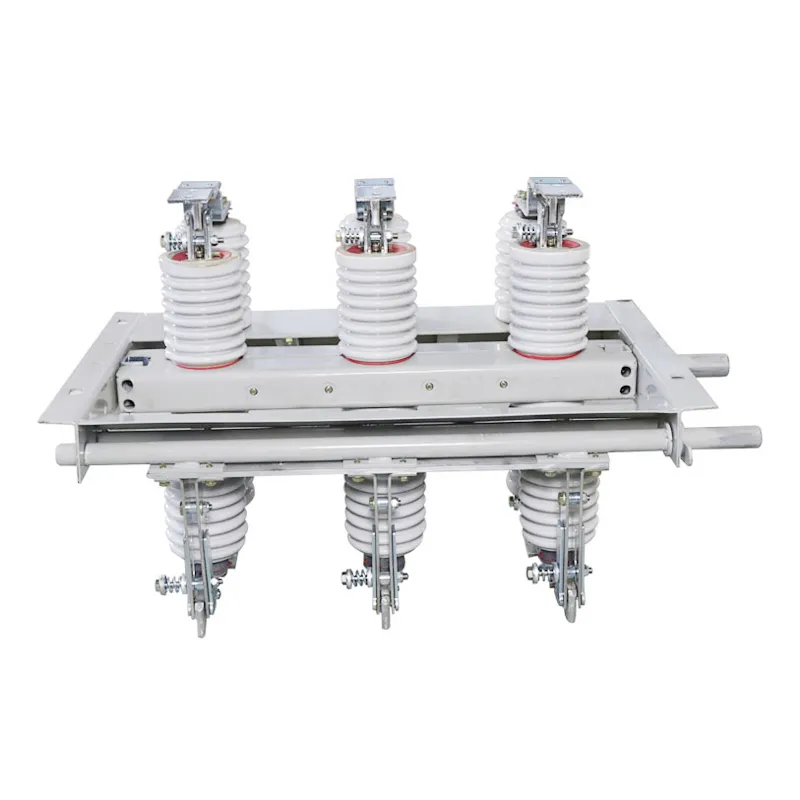

GN30-12(D) series Indoor high voltage disconnecting switches is a  new type of touch rotating knife isolator , which special designed for XGN2-12 HV Switchgear,  with rated voltage 12kV and three phase AC 50Hz indoor device. It’s mainly used  for making and breaking circuit under with voltage and no load.

Its main structure in three-phase chassis of the upper and  lower two plane, fixed two set of insulator and contact, by rotating contactor,  so as to realize switching on & off.

Environment condition

Ambient temperature: max. +40°C min. -25°C

Altitude: ≤1000m

Wind pressure: ≤700Pa (equals to wind speed 34m/s)

Relative humidity: daily average ≤95%, monthly average ≤90%

Earthquake intensity: ≤8 degree

No corrosive, explosive or flammable gas ,no violent vibration

Technical Data

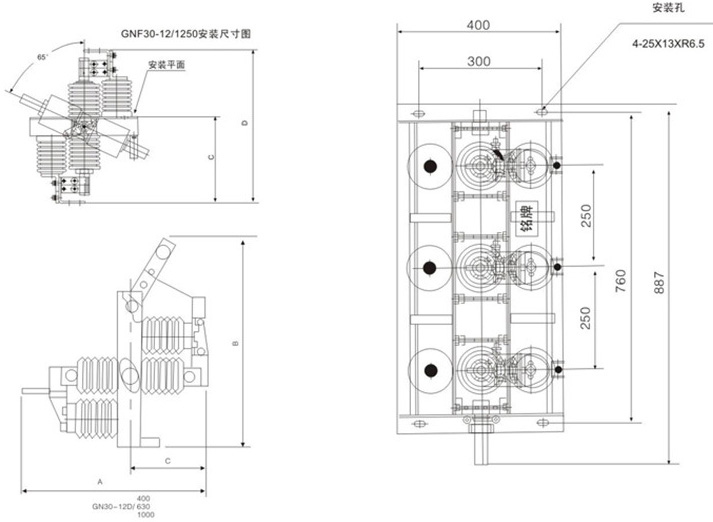

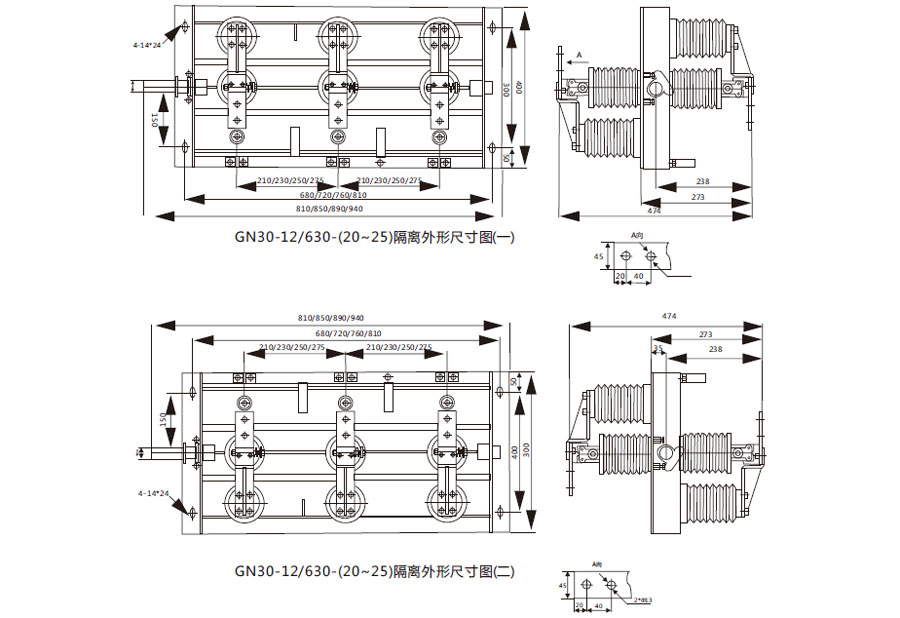

Outline & Mounting Dimensions
