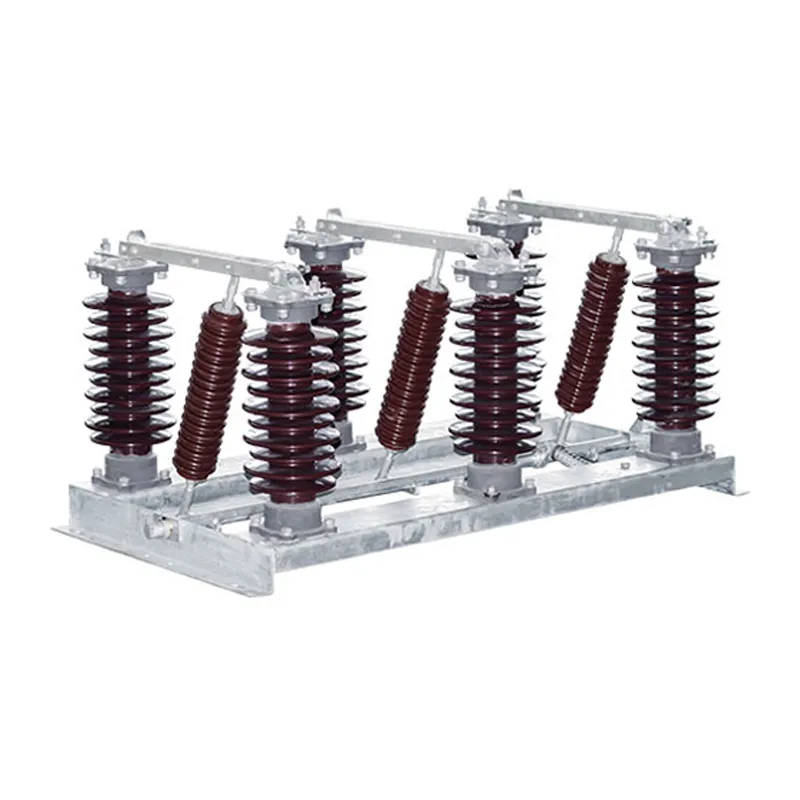

GW口-15D series outdoor high-voltage isolating switch, which is a high-voltage  Switchgear with single-pole structure. It can be used for circuit and circuit  in the outdoor 12KV line network with voltage and no load.

Switch  with grounding knife, with CS port type manual Mechanism, can prevent the  grounding wire and the grounding wire from being "closed" Waiting for  the wrong operation, the operator does not have to hang the ground wire.

The  anti-fouling outdoor high-voltage isolating switch can meet the requirements of  users in severely polluted areas, and can effectively solve the problem of  pollution flashing that occurs in the operation of the isolating switch.

Environment condition

Ambient temperature: max +40°C min -30°C

Altitude: ≤1000m

Air contamination degree: IV degree

Earthquake intensity: ≤8 degree

No corrosive or flammable gas

Technical Data

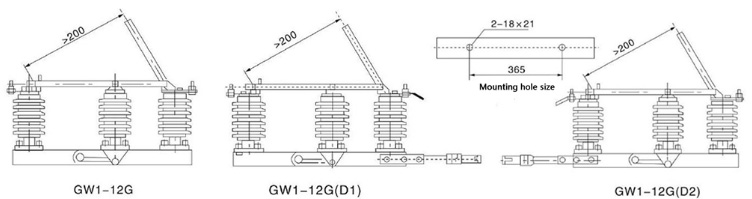

Outline & Mounting Dimensions
