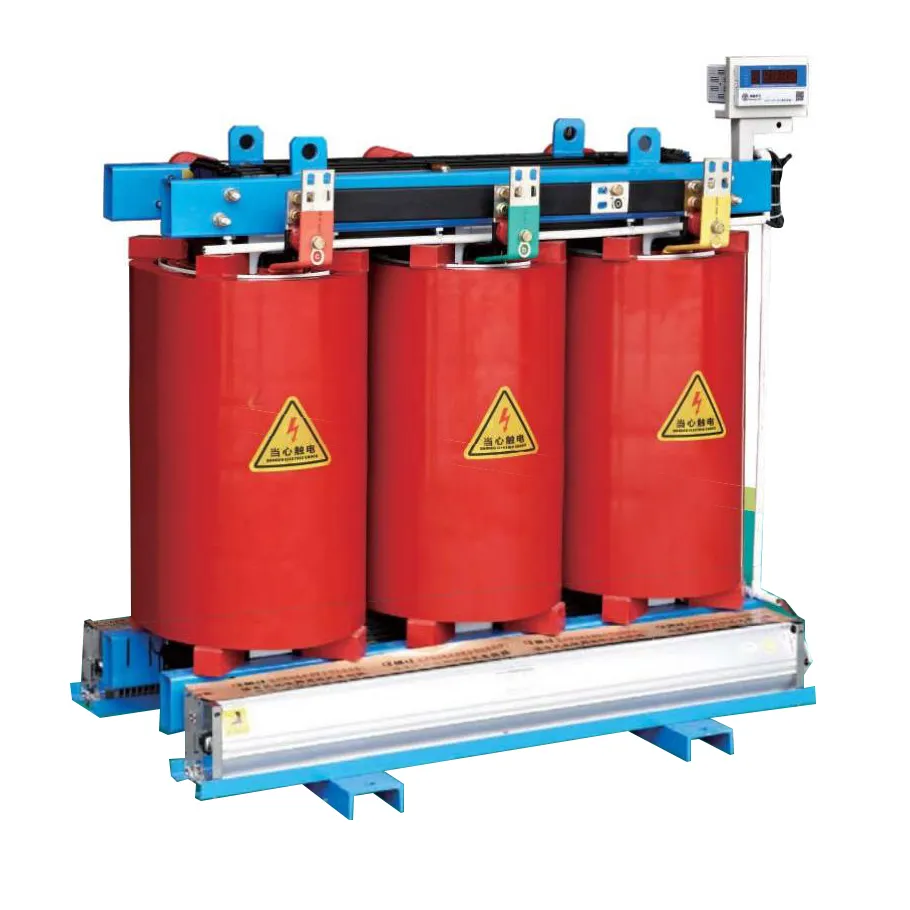

SC(B)10 and SC(B)11 Type Dry-Type Transformers

Product model description

Product Overview

Our dry-type transformers meet all relevant performance standards and have been proven reliable in operation by customers, achieving nationally advanced technical levels. This product series incorporates advanced international manufacturing technologies, supported by complete, accurate, and clearly documented design drawings and technical specifications. With state-of-the-art production equipment, stable manufacturing processes, and comprehensive testing capabilities, we ensure consistently high product quality.

Product Features

The SC(B)10 and SC(B)11 epoxy resin cast dry-type transformers are manufactured in compliance with the "Dry-Type Power transformers" standard. These products feature:

1.Low loss design with excellent energy-saving performance

2.Economical operation with maintenance-free characteristics

3.Advanced structural design with high resistance to short-circuit and lightning impulses

4.Flame-retardant, moisture-proof, dust-resistant, and low-noise properties

5.Capability for installation at load centers

Widely suitable for:

1.High-rise buildings

2.Airports, railway stations, and ports

3.Power plants and substations

4.Particularly ideal for flammable/explosive environments requiring high fire safety standards

Standard Configuration

1.Standard models are supplied without enclosure (IP00 protection level)

2.Optional enclosures available:

IP20 or IP23 protection class

Material options: carbon steel, stainless steel, or aluminum alloy

Surface treatments: acid washing, phosphating, or powder coating

3.Temperature control display and load monitoring instruments are conveniently installed on the LV side enclosure for easy observation and safe operation

Technical Parameters

1.Key performance parameters for SC(B)10/11 models: (See attached table)

2.Phase: 3-phase

3.Frequency: 50Hz

4.Insulation thermal class: Class F

5.Average winding temperature rise: ≤100K

6.Partial discharge:<5pC
