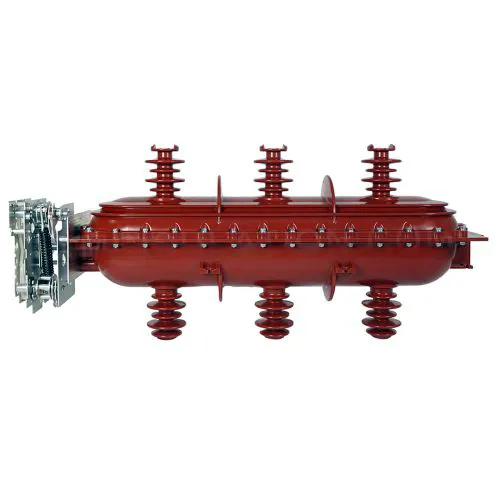

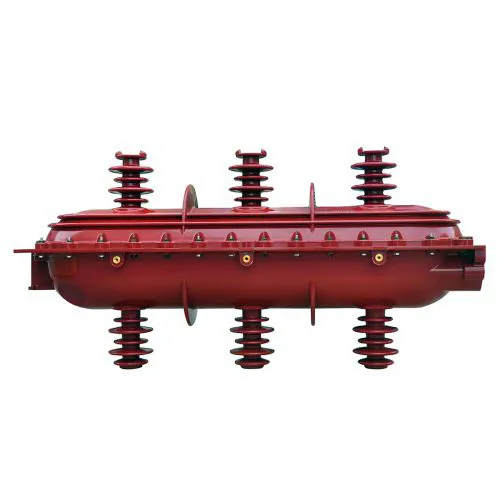

FLN36-40.5D-350MM SF6 load circuit breaker 36KV LBS spacing 350MM

Description:

FLN-35D and FLRN-35D indoor SF6 load switches and indoor SF6 load switch fuse combination devices are suitable for three-phase AC 50/60HZ ring network or terminal power supply power stations and industrial power equipment, as power system load control line protection, load switch disconnection and connection load current, closed loop current, no-load transformer and cable charging current; combination devices can disconnect any current under rated short-circuit current, suitable for ring network...
Request a Quote
Download
  • Detailed Description

  • Product Overview

    FLN-35D and FLRN-35D indoor SF6 Load Switches and indoor SF6 Load Switch fuse combination devices are suitable for three-phase AC 50/60HZ ring network or terminal power supply power stations and industrial power equipment, as power system load control line protection, load switch disconnection and connection load current, closed loop current, no-load transformer and cable charging current; combination devices can disconnect any current under rated short-circuit current, suitable for ring network stations, box-type substations and other electrical complete sets.


    Normal Ambient Condition

    1、Altitude:<2000M

    2、Ambienttemperature:-40℃~+40℃

    3、 Relative humidity: daily average ≤95%, monthly average ≦ 90%,

    4、 Earthquake intensity:≤ 8 degree


    Technical Specification

    No.ItemUnitParameter
    1Rated voltageKV40.5
    2Rated frequencyHz50
    3Rated currentA630
    41min Power frequency
    withstand voltage    		wetKV95
    dry95
    5Lightning impulse withstand voltageKV185
    6Rated short circuit breaking
    current(peak)    		KA20
    7Rated activeload and close circuit
    breaking current    		A630
    8Rated transferring currentA630
    9Rated short circuit making
    current(peak)    		KA63
    10Rated cable(line)charging
    breaking current    		A10
    11Cable charage breaking current
    in earthing fault    		A30
    12Rated withstand current (peak)KA63
    13Short time withsatnd current(2s)KA25
    14Mechanism lifetime5000

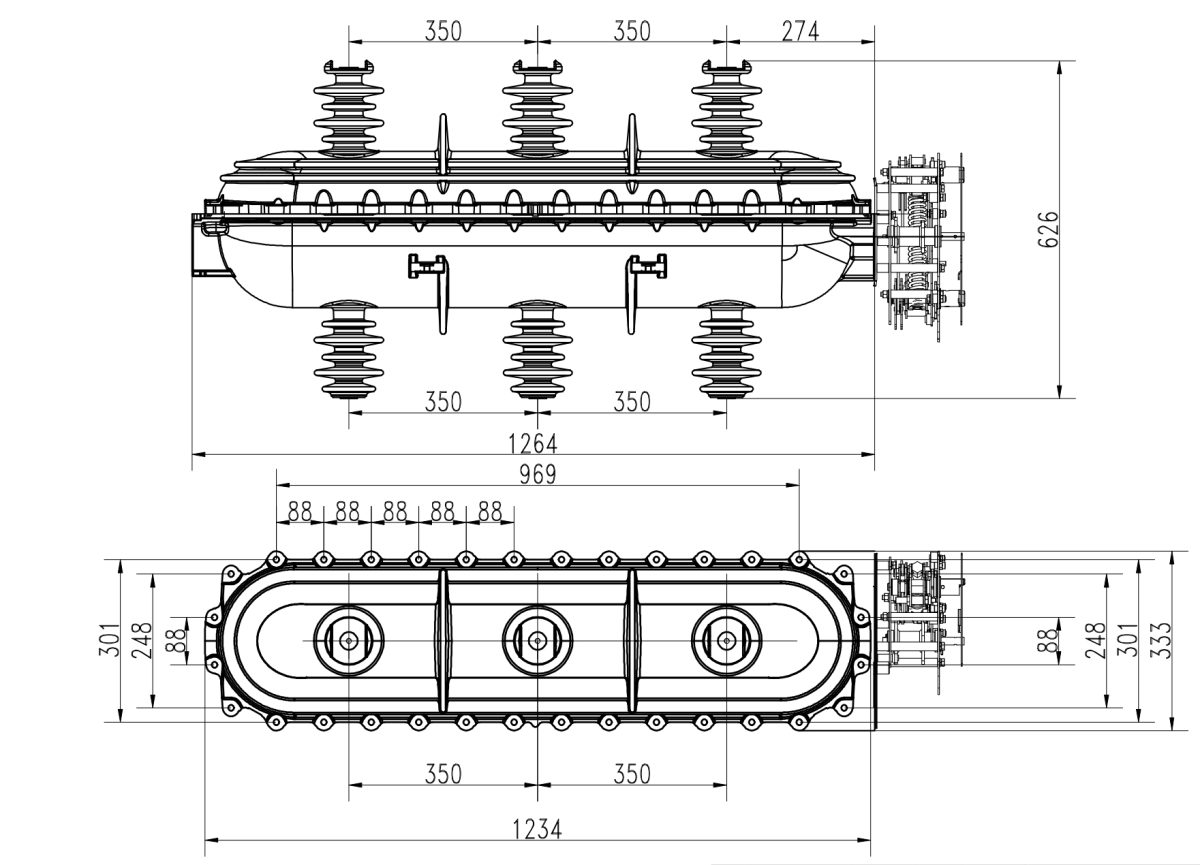

    Outline Overalland Installing Dimensions
